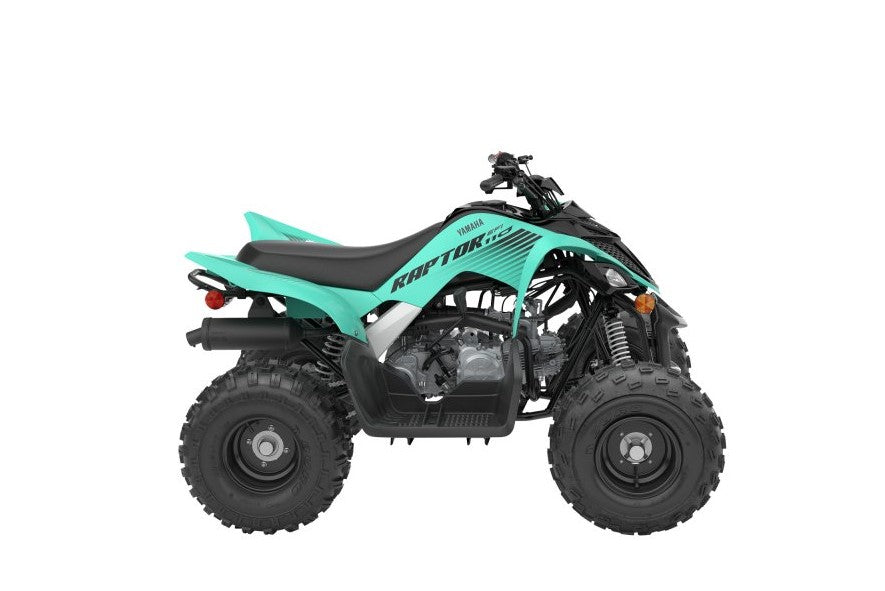

2024 Yamaha Raptor 110 EFI

KEY FEATURES

• NEW! Fuel-injected 112cc four-stroke SOHC engine
• Push-button electric starting
• Single overhead camshaft (SOHC), 2-valve design.
• Flat top piston & lightweight ball bearing style crankshaft.
• Automatic cam chain adjuste

 SPECIFICATIONS

Model

RAPTOR 110

Year

2024

Sale Type

New

Manufacturer

Yamaha

Vin

RF3AE08W8RT000546

Color

Team Yamaha Blue

Class

A

CodeName

RAPTOR 110

Model Code

YF11RRL

Titlestatus

CLEAN

Unitcondition

EXCELLENT

Model Code

YF11RRL

Province

Ontario

 ENGINE

ENGINE

Air-cooled, SOHC, 2-valve, single

IGNITION

TCI: Transistor Controlled Ignition

STARTING

Electric with auxillary kick

FINAL DRIVE

O-ring chain

DISPLACEMENT

112cc

TRANSMISSION

Fully automatic CVT with reverse

FUEL DELIVERY

Yamaha Fuel Injection (YFI), 22mm

BORE AND STROKE

52.4mm x 51.8mm

COMPRESSION RATIO

9.2 : 1

 FEATURES AND BENEFITS

ENGINE

• Push-button electric starting backed up by an auxiliary kick starter.
• Electric starting makes learning to ride more fun
• Single overhead camshaft (SOHC), 2-valve design.
• Simple 1- intake valve & 1- exhaust valve cylinder head design
• Utilizes conventional rocker arms & screw type tappet adjusters for easier maintenance
• Flat top piston & lightweight ball bearing style crankshaft.
• 9.2:1 compression ratio, uses regular gas
• Lightweight components means faster engine response
• Automatic cam chain adjuster.
• Reduces maintenance & mechanical engine noise
• Fully automatic CVT transmission with reverse.
• Automatic clutch and no gears allows young riders to concentrate on the basics of riding & developing riding skills
• Automotive style gated shifter: forward, neutral & reverse
• Handlebar mounted indicator lights provide indication of drive selection (Neutral or reverse)
• Easy access, no tools required washable foam air filter.
• Reduces maintenance costs
• Re-usable design

CHASSIS/SUSPENSION

• Rugged round tube steel frame.
• Compact design provides nimble, responsive handling
• Low seat height (750 mm / 29.5") makes getting on & off easy
• Adjustable independent, single A-arm front suspension.
• 5-position spring preload adjustability to match rider weight and / or trail conditions
• 126 mm (5") front wheel travel
• Grease fitting on selected components
• Adjustable single shock rear suspension.
• 5-position spring preload adjustability
• 145 mm (5.7") front wheel travel
• Dual front drum brakes.
• Independent (separate) front & rear braking for enhanced control & terrain-ability
• Hand-operated brake levers are similar to those used on a bicycle for easy familiarity
• Single drum rear brake with handlebar mounted lever style parking brake.
• Consistent braking performance
• Rugged steel rims fitted with 18" tires.
• Steel rims provide excellent durability & traction
• Tire design enhances steering precision, ride comfort & traction
• 6 litre fuel tank.
• On - off - reserve petcock helps to prevent running out of gas
• Reserve portion of tank is 0.9 litres
• Rugged & roomy floorboards.
• Excellent rider foot protection
• Helps reduce mud & water splash
• Sporty styling & rugged body work.
• Sporty styling & high fenders are inspired by the mighty Raptor 700R.
• Durable O-ring drive chain.
• Single adjusting bolt makes chain adjusting easy
• Low maintenance, sealed battery (battery should be charged during extended storage).
• Battery is sealed... no need to check electrolyte levels or add distilled water

SAFETY FEATURES

• Keyed ignition lets parents control use
• Heat shields on exhaust protect young riders from hot components
• Adjustable speed limiter screw on throttle housing restricts throttle lever movement to reduce acceleration & top speed.
• 2-stage rpm limiter device limits engine rpm. As skills improve, the limiter can be removed & maximum engine rpm will increase from 4,900 rpm to 8,500 rpm making a significant difference in power & performance.
